RawSEDMLView pluginΒΆ

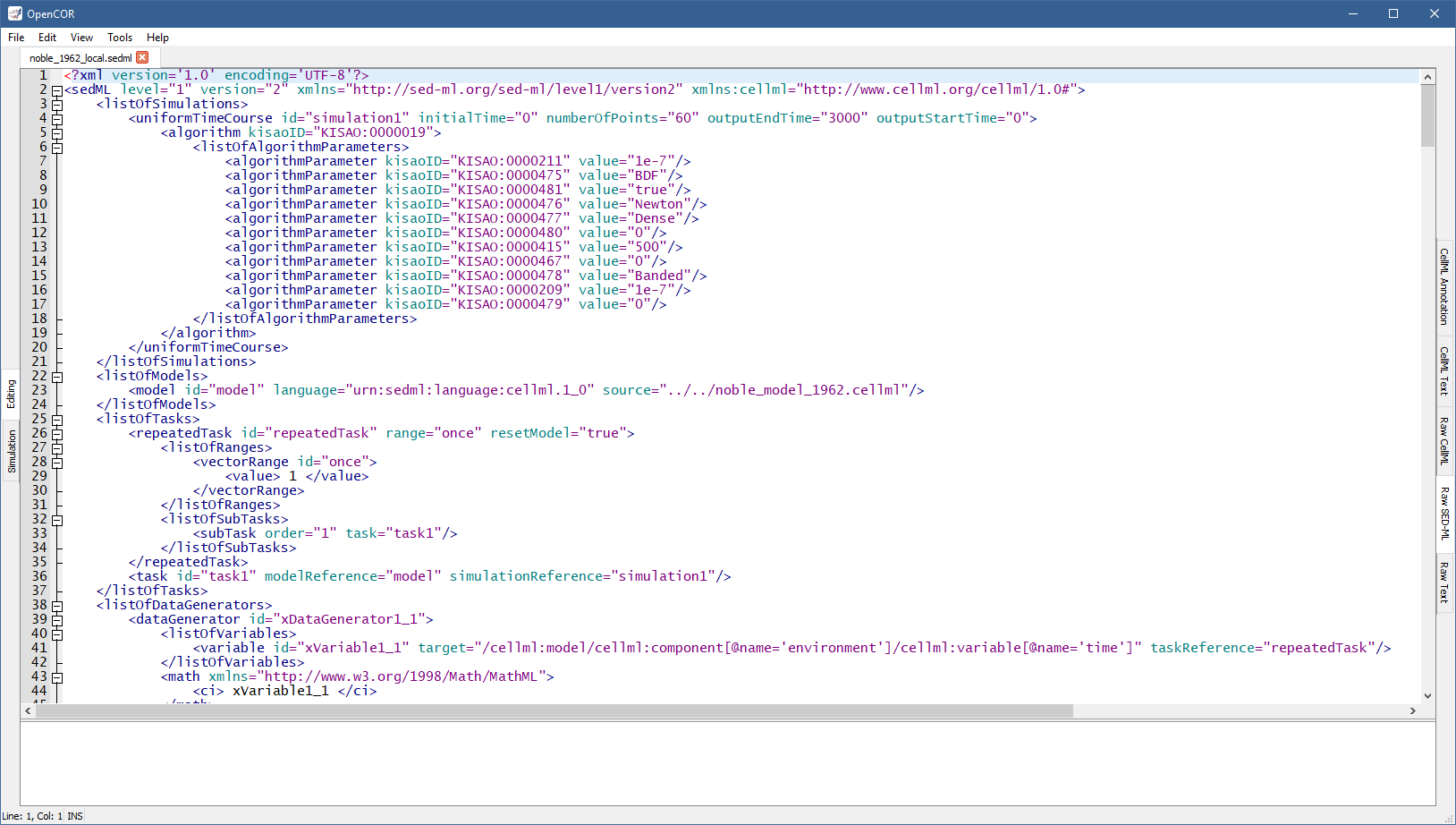

The RawSEDMLView plugin can be used to edit SED-ML files in their raw format using a text editor. If you open a SED-ML file, it will look something like:

../../_images/RawSEDMLViewScreenshot01.png

Apart from using syntax highlighting, the view has the same features as the Raw Text view.

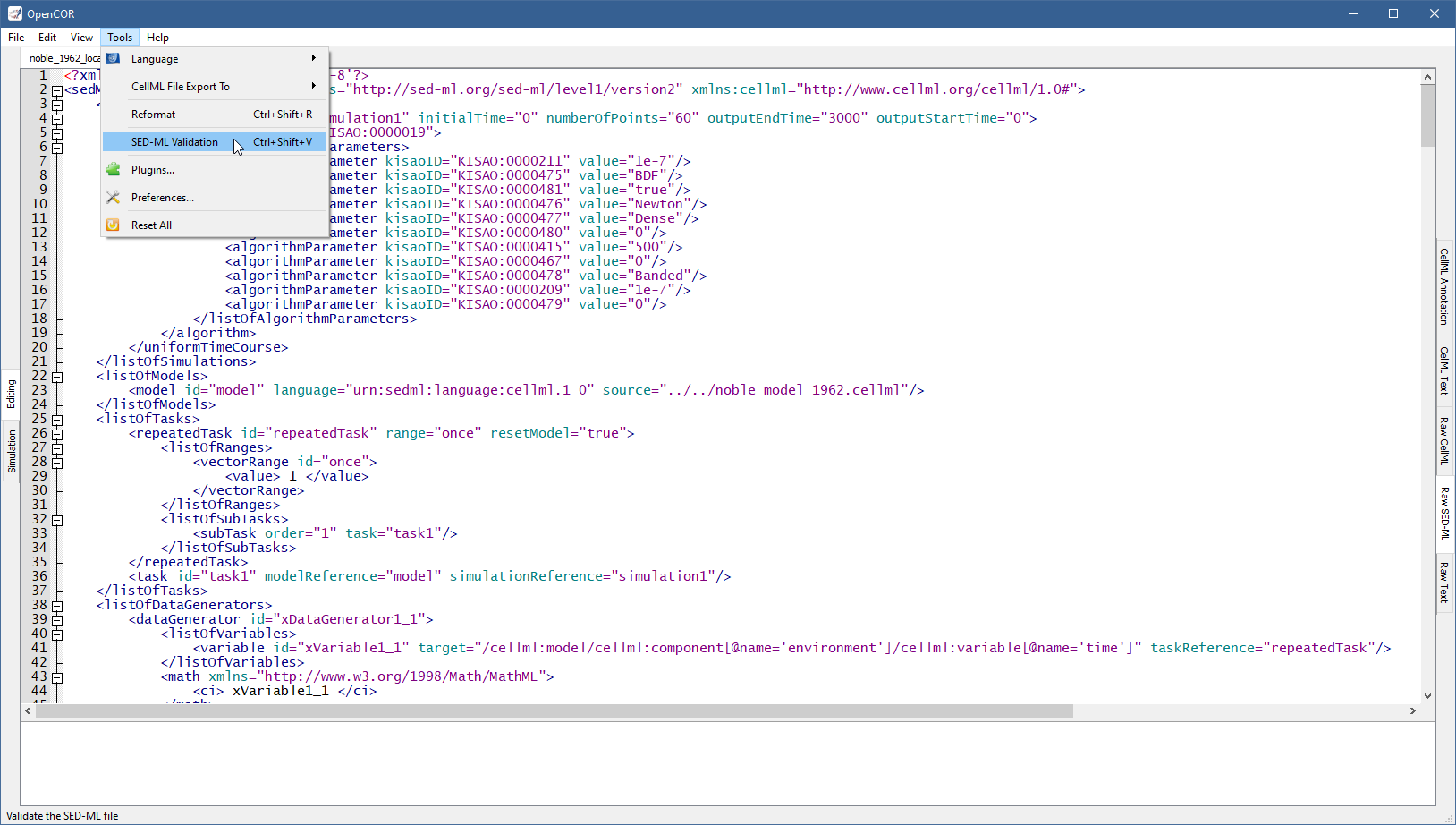

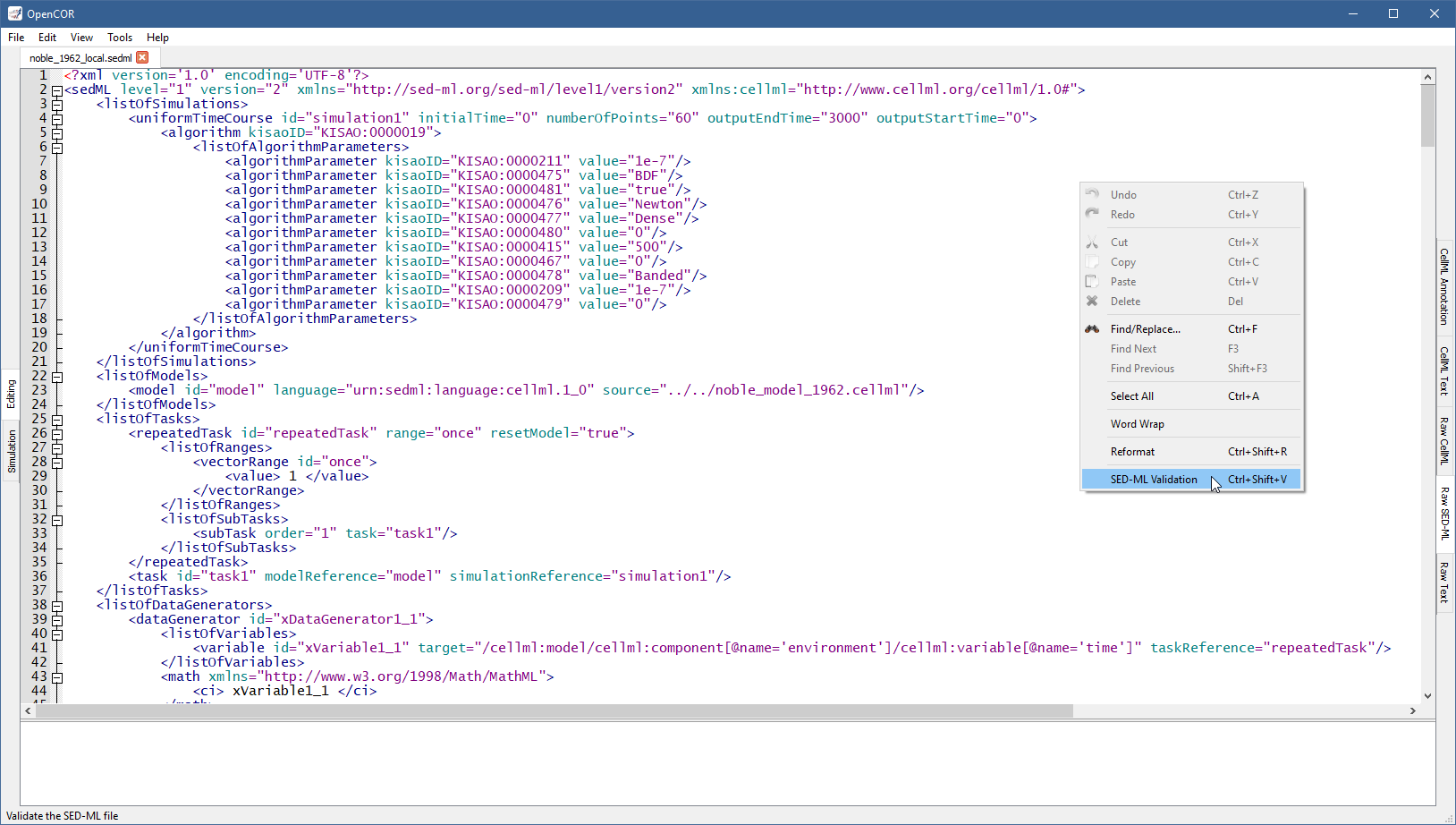

The panel below the text editor is used to list any SED-ML issue that results from trying to validate a SED-ML file, which can be done either by pressing Ctrl+Shift+V or through the Tools | SED-ML Validation menu or the context menu of the text editor:

../../_images/RawSEDMLViewScreenshot02.png ../../_images/RawSEDMLViewScreenshot03.png

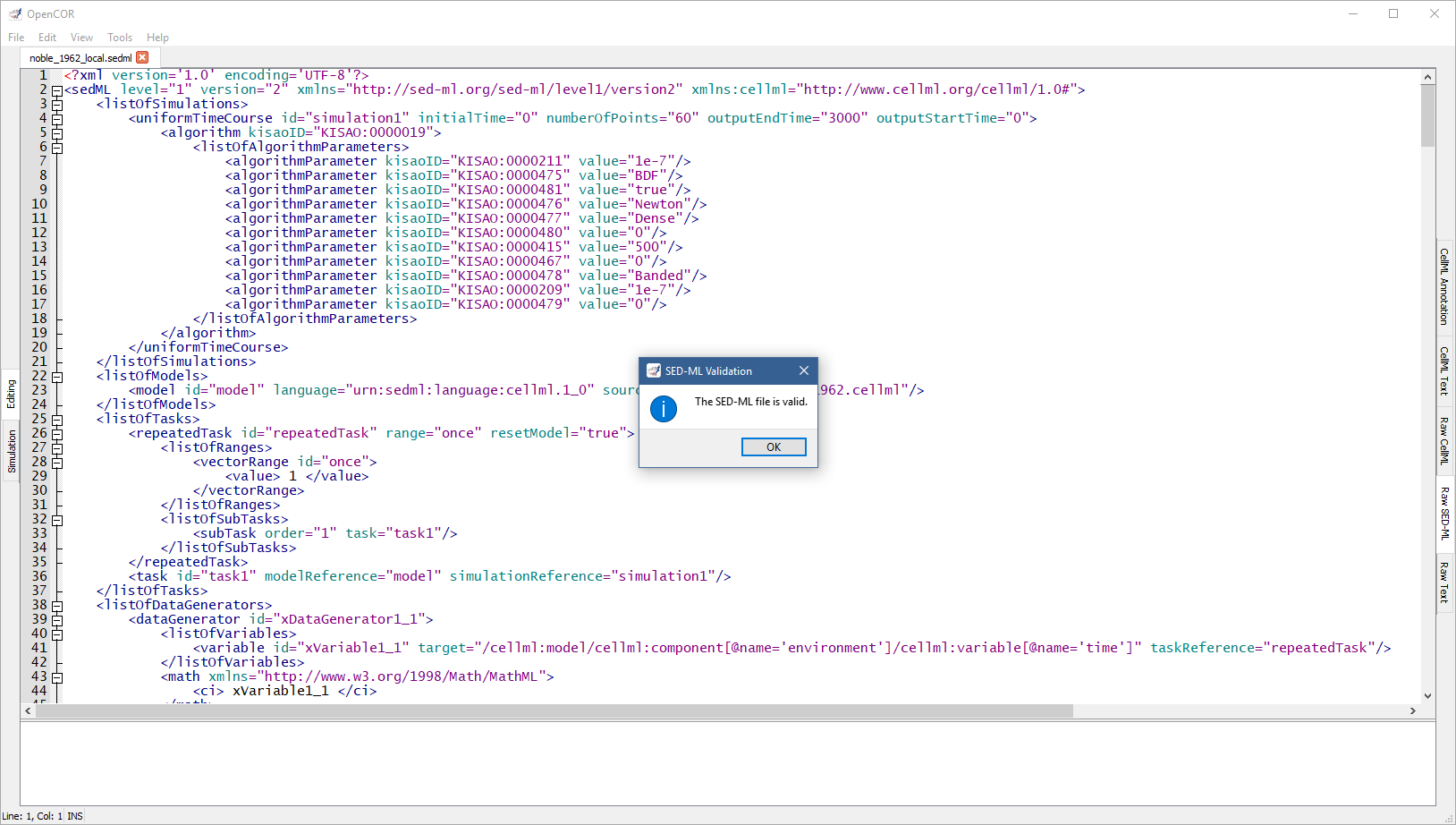

If the SED-ML file is valid, a message box gets displayed:

../../_images/RawSEDMLViewScreenshot04.png

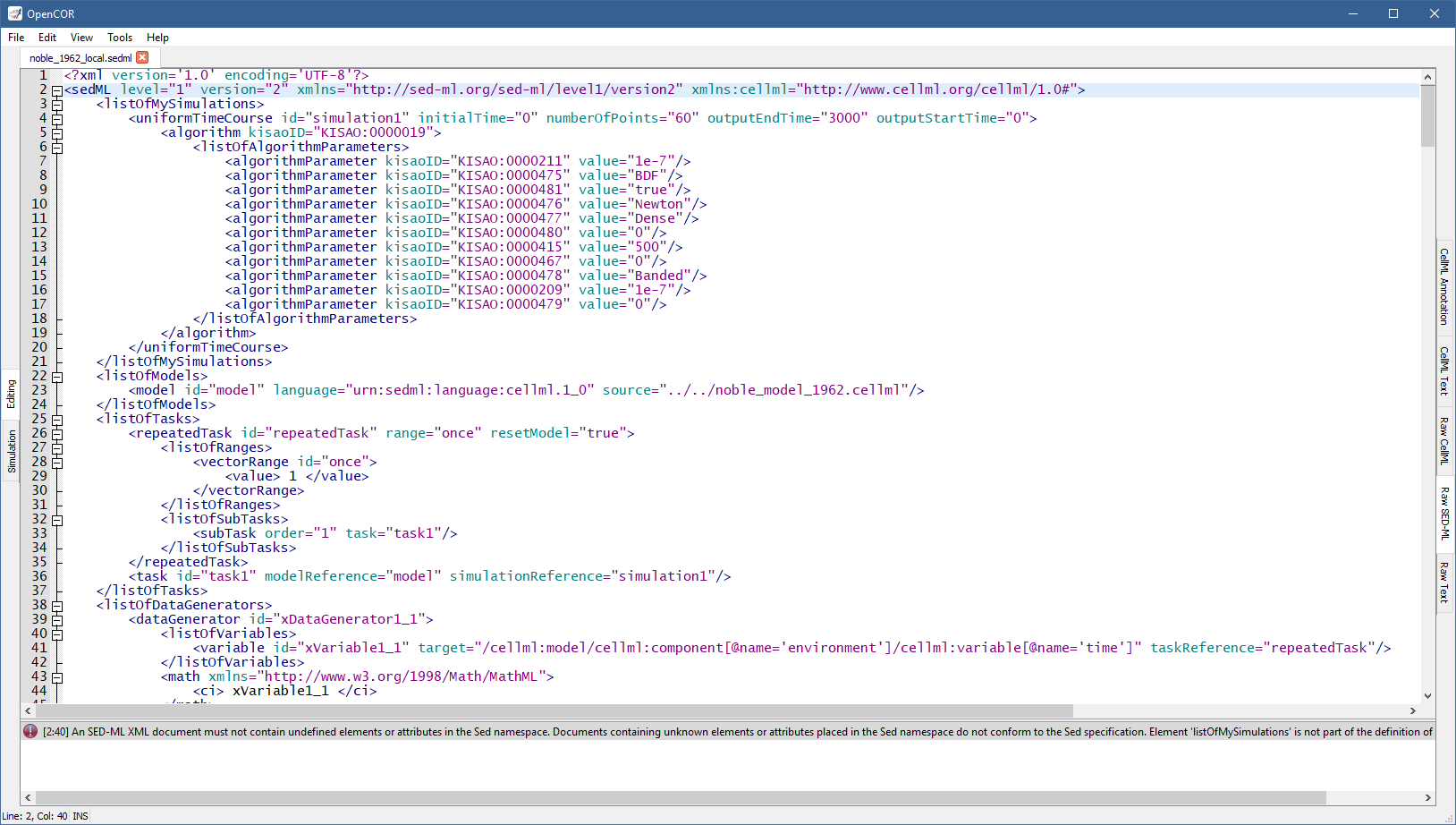

Otherwise, the bottom panel lists all the issues with the SED-ML file:

../../_images/RawSEDMLViewScreenshot05.png

To double click on an issue will get the text editor to navigate to the corresponding line.

It may happen, while editing a SED-ML file, that the contents of the text editor is not properly formatted anymore. In this case, you can reformat it by pressing Ctrl+Shift+R or through the Tools | Reformat menu or even the context menu of the text editor.
