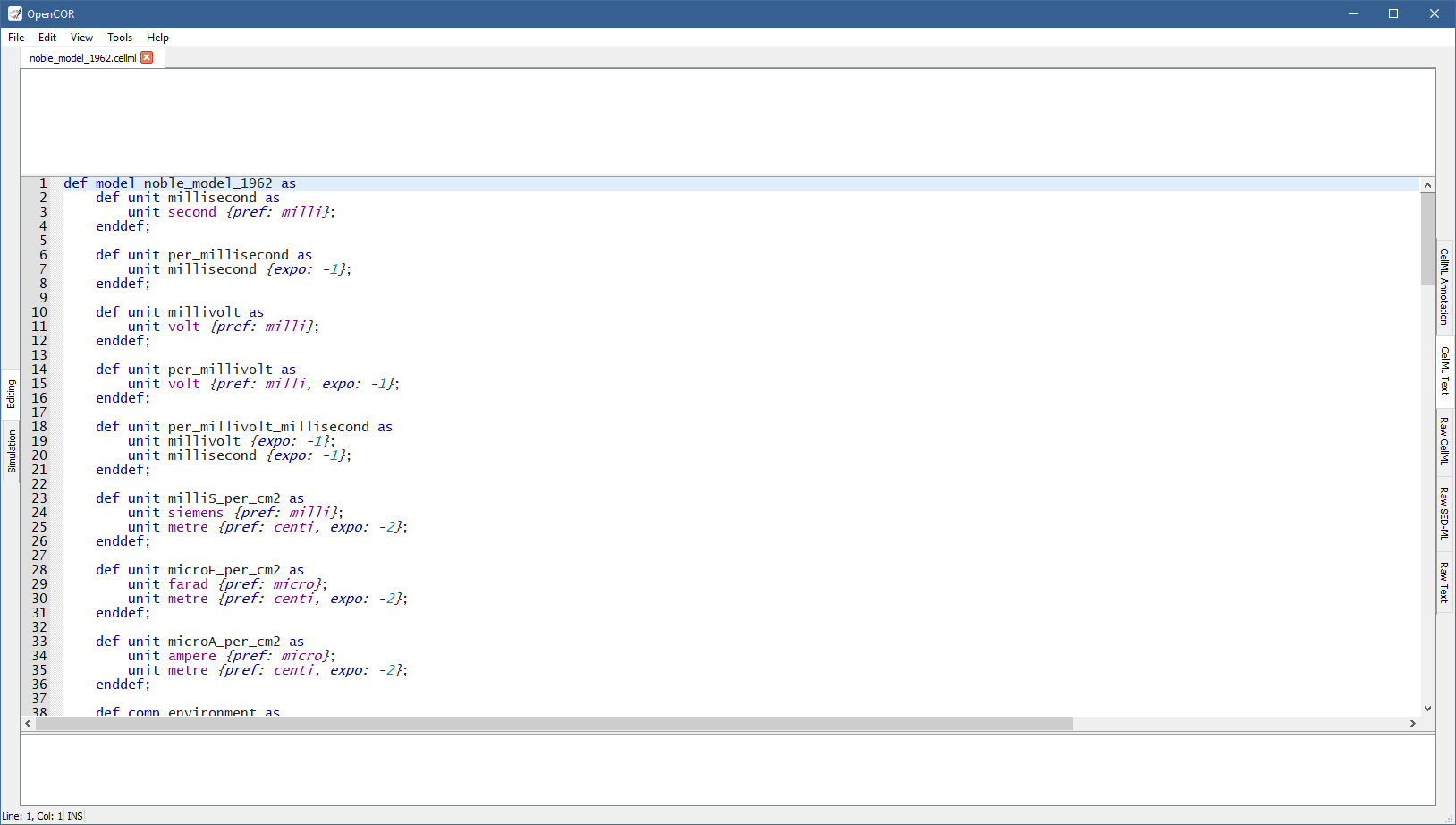

The CellMLTextView plugin can be used to edit CellML files using a text editor that supports the CellML Text format. If you open a CellML file, it will look something like:

Apart from using a specific format, the view has the same features as the Raw CellML view with one exception: currently, `CellML Validation`

only validates against the CellML Text format.

People familiar with COR will find that the CellML Text format is compatible with the COR format, although it supports additional features:

- Comments;
- The
`import`

element (i.e. support for CellML 1.1); - The
`cmeta:id`

attribute on all CellML elements (i.e. support for CellML annotation); - The
`degree`

qualifier for the`diff`

element (i.e. support for higher-order derivatives); - The
`notanumber`

and`infinity`

constants; and - An unlimited number of group types (in COR, a group can only specify one
`encapsulation`

and/or one`containment`

type).

However, note that the COR format has some limitations that are also present in the CellML Text format:

- The
`reaction`

element is not supported (its use is not only discouraged, but it has also been removed from CellML 2.0, the next version of CellML); - A
`piecewise`

statement can only be used as part of a top-level`eq`

statement, and nested`piecewise`

statements are not allowed (the latter is not a limitation*per se*since an equation can always be rewritten without the need for nested`piecewise`

statements; more importantly, it is easier to read and maintain an equation that uses only one top-level`piecewise`

statement); and - A
`component`

element may contain a set of`math`

elements, but its rendering is such that when serialised back, only one`math`

element will remain, with all the equations in that one and unique`math`

element.

You can (un)comment a piece of code by pressing `Ctrl`

+`/`

.
If no text is selected or if it consists of one or several full lines, then the comment will be rendered as `// XXX`

, e.g.

```
def model my_model as
// A single line comment
...
enddef;
```

Alternatively, if one or several lines are partially selected, then the comment will be rendered as `/* XXX */`

, e.g.

```
def model my/*_super_duper*/_model as
...
enddef;
```

Note that `/* XXX */`

comments are only for convenience and are not serialised back to CellML.
Indeed, such comments can be inserted anywhere, including within an equation, e.g.

```
ode(V, time) = -(i_Na+i_K+i_Leak/*+i_Stim*/)/Cm;
```

It is therefore difficult, if not impossible, to determine where such comments should be included when serialised back.

`// XXX`

comments can also be inserted anywhere, but unlike `/* XXX */`

comments they are serialised back.
However, the rendering of certain elements using the CellML Text format is such that when serialised back, `// XXX`

comments may be included in the parent element of those elements, and either before or after those elements, depending on the situation.

The CellML Text format offers, for the large part, a one-to-one mapping to the CellML format with the view of making it easier to create and edit CellML files.

To define a model of name `my_model`

, we use:

```
def model my_model as
...
enddef;
```

The model definition sits between `as`

and `enddef;`

, and can consist of imports, unit definitions, component definitions, group definitions and mapping definitions.

To define an import for units and components defined in a CellML file, which URI is `my_imported_model_uri`

, we would use:

```
def import using "my_imported_model_uri" for
...
enddef;
```

To import a unit originally named `my_reference_unit`

and renamed `my_imported_unit`

in our model, we would use:

```
unit my_imported_unit using unit my_reference_unit;
```

Similarly, to import a component originally named `my_reference_component`

and renamed `my_imported_component`

in our model, we would use:

```
comp my_imported_component using comp my_reference_component;
```

Putting everything together, we would have:

```
def import using "my_imported_model_uri" for
unit my_imported_unit using unit my_reference_unit;
comp my_imported_component using comp my_reference_component;
enddef;
```

To define a base unit of name `my_base_unit`

, we would use:

```
def unit my_base_unit as base unit;
```

To define a unit of name `my_unit`

, based on some other units, we would use:

```
def unit my_unit as
unit my_other_unit {...};
unit second {...};
unit litre {...};
unit volt {...};
...
enddef;
```

`my_other_unit`

refers to a user-defined unit while `second`

is an SI base unit, `litre`

a convenience unit and `volt`

an SI derived unit .
The following SI base (in bold) and derived units, as well as convenience units (in italics), can be used:

ampere |
becquerel | candela |
celsius | coulomb | dimensionless |

farad | gram |
gray | henry | hertz | joule |

katal | kelvin |
kilogram |
liter |
litre |
lumen |

lux | meter |
metre |
mole |
newton | ohm |

pascal | radian | second |
siemens | sievert | steradian |

tesla | volt | watt | weber |

Additional information can be provided within curly brackets.
Thus, `prefix`

, `exponent`

, `multiplier`

and `offset`

values of \(p\), \(e\), \(m\) and \(o\) can be used on a unit \(u\) to define a new unit equal to \(m \cdot (p \cdot u)^e+o\).
For example, to define `my_unit`

as being equal to \(3 \cdot (milli \cdot my\_other\_unit)^{-1}+7\), we would use:

```
def unit my_unit as
unit my_other_unit {pref: milli, expo: -1, mult: 3, off: 7};
enddef;
```

By default, `pref`

, `expo`

, `mult`

and `off`

have a value of \(0\), \(1.0\), \(1.0\) and \(0.0\), respectively.
`pref`

can either be an integer or have any of the following values:

yotta | \(10^{24}\) | deci | \(10^{-1}\) |

zetta | \(10^{21}\) | centi | \(10^{-2}\) |

exa | \(10^{18}\) | milli | \(10^{-3}\) |

peta | \(10^{15}\) | micro | \(10^{-6}\) |

tera | \(10^{12}\) | nano | \(10^{-9}\) |

giga | \(10^{9}\) | pico | \(10^{-12}\) |

mega | \(10^{6}\) | femto | \(10^{-15}\) |

kilo | \(10^{3}\) | atto | \(10^{-18}\) |

hecto | \(10^{2}\) | zepto | \(10^{-21}\) |

deka | \(10^{1}\) | yocto | \(10^{-24}\) |

To define a component of name `my_component`

, we would use:

```
def comp my_component as
...
enddef;
```

The component definition sits between `as`

and `enddef;`

, and can consist of unit definitions, variable definitions, mathematical equations.

To define a variable of name `my_variable`

and of unit `my_unit`

, we would use:

```
var my_variable: my_unit {...};
```

Additional information can be provided within curly brackets: an initial value, a public interface and/or a private interface.
For example, to initialise `my_variable`

to \(3\) and set its public and private interfaces to `in`

and `out`

, respectively, we would use:

```
var my_variable: my_unit {init: 3, pub: in, priv: out};
```

By default, `init`

has no value (i.e. the variable is not initialised) while `pub`

and `priv`

have a value of `none`

(i.e. the variable belongs to the current component and is not visible to other components in the model).
`init`

can either take a real number as a value or the name of a variable defined in the current component.
Both `pub`

and `priv`

can take any of the following values: `none`

, `in`

or `out`

.

A mathematical equation must either have an identifier or an ODE on its left hand side, i.e. \(x=...\) and \(\frac{dx}{dt}=...\), respectively. To write such equations, we would use:

```
x = ...;
```

and

```
ode(x, t) = ...;
```

The ODE is a first-order ODE and could also be written:

```
ode(x, t, 1{dimensionless})
```

As can be seen, the order of the ODE is specified using a constant value of unit `dimensionless`

, which means that to have \(\frac{d^2 x}{dt^2}\), \(\frac{d^3 x}{dt^3}\), etc., we would use:

```
ode(x, t, 2{dimensionless})
ode(x, t, 3{dimensionless})
...
```

The right-hand side of a mathematical equation can use any of the following mathematical operators, elements and constants:

Relational operators:

`=`

Equality (assignment) x = y

`==`

Equality (binary) x == y

`<>`

Inequality x <> y

`>`

Greater than x > y

`<`

Lower than x < y

`>=`

Greater than or equal to x >= y

`<=`

Lower than or equal to x <= y

Arithmetic operators:

`+`

Addition x+y

`-`

Subtraction x-y

`*`

Multiplication x*y

`/`

Division x/y

`pow`

Exponentiation (generic) pow(x, 3{dimensionless}) pow(x, y)

`sqr`

Exponentiation (square) sqr(x)

`root`

Root (generic) root(x, 3{dimensionless}) root(x, y)

`sqrt`

Root (square) sqrt(x)

`abs`

Absolute value abs(x)

`exp`

Exponential exp(x)

`ln`

Natural logarithm ln(x)

`log`

Logarithm log(x) log(x, 3{dimensionless}) log(x, y)

`floor`

Floor floor(x)

`ceil`

Ceiling ceil(x)

`fact`

Factorial fact(x)

`rem`

Remainder rem(x, 3{dimensionless}) rem(x, y)

`min`

Minimum min(x, 3{dimensionless}) min(x, y) min(x, y, z)

`max`

Maximum max(x, 3{dimensionless}) max(x, y) max(x, y, z)

`gcd`

Greatest common divisor gcd(x, 3{dimensionless}) gcd(x, y) gcd(x, y, z)

`lcm`

Least common multiple lcm(x, 3{dimensionless}) lcm(x, y) lcm(x, y, z)

Logical operators:

`and`

And x and y

`or`

Or x or y

`xor`

Exclusive or x xor y

`not`

Not not x not(x and y)

Calculus elements:

`ode`

Differentiation ode(x, t) ode(x, t, 2{dimensionless})

Trigonometric operators:

`sin`

`sinh`

`asin`

`asinh`

SineHyperbolic sineInverse sineInverse hyperbolic sinesin(x) sinh(x) asin(x) asinh(x)

`cos`

`cosh`

`acos`

`acosh`

CosineHyperbolic cosineInverse cosineInverse hyperbolic cosinecos(x) cosh(x) acos(x) acosh(x)

`tan`

`tanh`

`atan`

`atanh`

TangentHyperbolic tangentInverse tangentInverse hyperbolic tangenttan(x) tanh(x) atan(x) atanh(x)

`sec`

`sech`

`asec`

`asech`

SecantHyperbolic secantInverse secantInverse hyperbolic secantsec(x) sech(x) asec(x) asech(x)

`csc`

`csch`

`acsc`

`acsch`

CosecantHyperbolic cosecantInverse cosecantInverse hyperbolic cosecantcsc(x) csch(x) acsc(x) acsch(x)

`cot`

`coth`

`acot`

`acoth`

CotangentHyperbolic cotangentInverse cotangentInverse hyperbolic cotangentcot(x) coth(x) acot(x) acoth(x)

Constants:

`true`

True `true`

`false`

False `false`

`nan`

Not a number `nan`

`pi`

Pi `pi`

`inf`

Infinity `inf`

`e`

Euler’s number `e`

A piecewise statement can also be used in the top-level of the right-hand side of a mathematical equation. For example, to define \(x\) as being equal to \(y+z\) when \(x > 0\) and \(y-z\) otherwise, we would use:

```
x = sel
case x > 0{dimensionless}:
y+z;
otherwise:
y-z;
endsel;
```

To define a group, we would use:

```
def group as ... for
...
enddef;
```

A group must be typed as a containment and/or an encapsulation. For example, to define a containment group, we would use:

```
def group as containment for
...
enddef;
```

A containment group can be named.
For example, to define a containment group of name `my_containment`

, we would use:

```
def group as containment my_containment for
...
enddef;
```

An encapsulation group is always nameless, so to define an encapsulation group, we would use:

```
def group as encapsulation for
...
enddef;
```

A group can have more than one type.
For example, to define a group as both an encapsulation group and a containment group (of name `my_containment`

), we would use:

```
def group as encapsulation and containment my_containment for
...
enddef;
```

A group definition is used whenever there is a need for a hierarchy of components.
Some components may include others.
For example, to define a group where both `my_component1`

and `my_component2`

are at the top level, and where `my_component1`

includes `my_component11`

, `my_component12`

and `my_component13`

, we would use:

```
def group as ... for
comp my_component1 incl
comp my_component11;
comp my_component12;
comp my_component13;
endcomp;
comp my_component2;
enddef;
```

Similarly, to define a group where `my_component1`

is at the top level, where `my_component1`

includes both `my_component11`

and `my_component12`

, and where `my_component11`

includes `my_component111`

, we would use:

```
def group as ... for
comp my_component1 incl
comp my_component11 incl
comp my_component111;
endcomp;
comp my_component12;
endcomp;
enddef;
```

To define some mappings between two components of name `my_component1`

and `my_component2`

, we would use:

```
def map between my_component1 and my_component2 for
...
enddef;
```

To map variables `my_variable1a`

with `my_variable2a`

, `my_variable1b`

with `my_variable2b`

, and `my_variable1c`

with `my_variable2c`

from components `my_component1`

and `my_component2`

, respectively, we would use:

```
def map between my_component1 and my_component2 for
vars my_variable1a and my_variable2a;
vars my_variable1b and my_variable2b;
vars my_variable1c and my_variable2c;
enddef;
```

The CellML Text format does not support the editing of CellML annotations.
However, `cmeta:id`

’s are used to make the link between CellML elements and CellML annotations.
So, we need the CellML Text format to support the use of `cmeta:id`

’s and this is done by enclosing a `cmeta:id`

value (e.g. `my_cmeta_id`

) within curly brackets:

```
{my_cmeta_id}
```

which can then be used to annotate various CellML elements:

```
def model{my_model_cmeta_id} my_model as
def import{my_import_cmeta_id} using "my_imported_model_uri" for
unit{my_imported_unit_cmeta_id} my_imported_unit using unit my_reference_unit;
comp{my_imported_component_cmeta_id} my_imported_component using comp my_reference_component;
enddef;
def unit{my_base_unit_cmeta_id} my_base_unit as base unit;
def unit{my_unit_cmeta_id} my_unit as
unit{my_other_unit_cmeta_id} my_other_unit {pref: milli, expo: -1, mult: 3, off: 7};
enddef;
def comp{my_component_cmeta_id} my_component as
var{my_variable_cmeta_id} my_variable: my_unit {init: 3, pub: in, priv: out};
a ={my_algebraic_equation_cmeta_id} b+c;
ode(d, t) ={my_ode_equation_cmeta_id} e+f;
enddef;
def group{my_group_cmeta_id} as encapsulation{my_encapsulation_cmeta_id} and containment{my_containment_cmeta_id} my_containment for
comp{my_component1_cmeta_id} my_component1 incl
comp{my_component11_cmeta_id} my_component11;
comp{my_component12_cmeta_id} my_component12;
comp{my_component13_cmeta_id} my_component13;
endcomp;
comp{my_component2_cmeta_id} my_component2;
enddef;
def map{my_map_cmeta_id} between{my_between_cmeta_id} my_component1 and my_component2 for
vars{my_varsa_cmeta_id} my_variable1a and my_variable2a;
vars{my_varsb_cmeta_id} my_variable1b and my_variable2b;
vars{my_varsc_cmeta_id} my_variable1c and my_variable2c;
enddef;
enddef;
```

The CellMLTextView plugin relies on the CellML Text format. CLI support has therefore been added to it so that a CellML file can, from the command line, be imported to the CellML Text format, and back.

For example, to import `models/van_der_pol_model_1928.cellml`

to the CellML Text format, we would do the following:

```
$ ./OpenCOR -c CellMLTextView::import models/van_der_pol_model_1928.cellml
def model van_der_pol_model_1928 as
def comp main as
def unit per_second as
unit second {expo: -1};
enddef;
var time: second;
var x: dimensionless {init: -2};
var y: dimensionless {init: 0};
var epsilon: dimensionless {init: 1};
ode(x, time) = y*1{per_second};
ode(y, time) = (epsilon*(1{dimensionless}-sqr(x))*y-x)*1{per_second};
enddef;
enddef;
```

Similarly, and assuming the above import has been saved to a file named `van_der_pol_model_1928.txt`

, we could get our original CellML file by doing the following:

```
$ ./OpenCOR -c CellMLTextView::export van_der_pol_model_1928.txt > van_der_pol_model_1928.cellml
```

For precaution, the new CellML file relies on CellML 1.1, as confirmed by `diff`

:

```
$ diff models/van_der_pol_model_1928.cellml van_der_pol_model_1928.cellml
2c2
< <model name="van_der_pol_model_1928" xmlns="http://www.cellml.org/cellml/1.0#" xmlns:cellml="http://www.cellml.org/cellml/1.0#">
---
> <model name="van_der_pol_model_1928" xmlns="http://www.cellml.org/cellml/1.1#" xmlns:cellml="http://www.cellml.org/cellml/1.1#">
```
